Direct Drive Upgrade
This LGX™ based upgrade kit is a easy to install replacement of the stock direct drive extruder. It requires the accessories included in the LGX™ Accessories For Sidewinder X1 and Copperhead™ package. This Upgrade Kit also includes the Copperhead hotend, the 24v 25mm fan, and a Bondtech Coated Brass nozzle.
Easy To Install

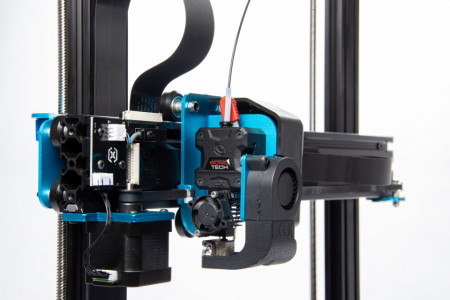

- Split the stepper motor from the extruder to install it on your Artillery Sidewinder X1.
- Place the mounting plate in between them.

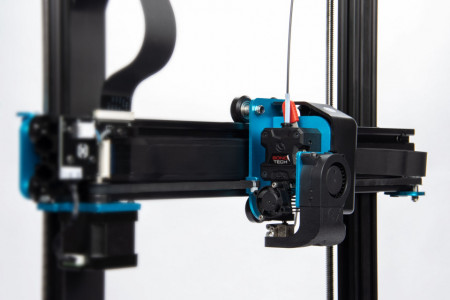

- The extruder is installed facing right, using the included Direct Drive Interface Plug to attach the hotend.
- Set the e-steps value to 400 using g-code.
Leading Grip Power
The LGX™ is the Bondtech extruder with the highest filament grip due to its new large drive wheels that put more teeth engaging the filament.
Enjoy Bondtech’s Evolved Dual Drive Technology
Start using our newest extruder with our new Dual Drive Technology based on larger drive gears. This is only one of the 7 new features Bondtech implemented on an extruder.
7 new features on a Bondtech eXtruder:
- Larger drive wheels, for increased filament grip;
- Filament pre-tension lever, for repeated results;
- Multi-function interface socket, for tool or application quick swap;
- Drive wheels’ maintenance windows, for easy cleaning;
- Compact, light & symmetric design, for increased performance and compatibility;
- Multiple mounting hole patterns, for easy and flexible setup;
- A small step for a greener Future, craft boxes without bleaching & no coating.
3D Printed Housing using PA12
The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.
Technical Specification
LGX™ extruder
- e-steps value : 400
- Drive wheels : hardened steel;
- retraction speed : 35 mm/s
- retraction distance (direct drive) for rigid materials : 0.4 mm
- retraction distance (direct drive) for soft materials : 3 mm
- Max operating temperature : 80°C
- LGX™ DD net weight : 218.6 g
- Package measurements : 80x103x73 mm
- Package weight : 269 g
- Download the LGX Technical Drawings here.
LDO Stepper Motor for Bondtech LGX™
- PH-06AWJ connector
- 2 phases
- DC 5.5 V
- Max 1.0A/phase
- Download the stepper motor Technical Data Sheet here.

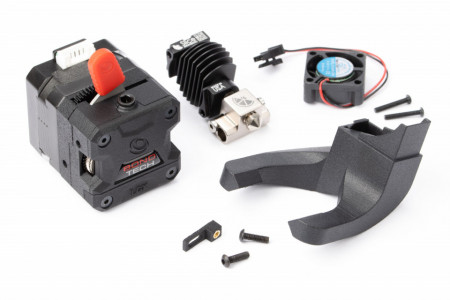

In the Box:
1x LGX™ Large Gears eXtruder:
- 1x LGX™ feeder
- 1x Custom LDO Nema17 25mm pancake stepper motor
- 1x Bowden Interface Plug (with threaded metal push-fit)
- 1x Direct Drive Interface Plug (for Slice Engineering hotends)
- 1x 2mm Hex Key (recommended tool)
- 1x Product Line Information Brochure
- 1x Powered By Bondtech sticker
1x LGX™ Accessories For Sidewinder X1 and Copperhead™:
- 1x LGX™ PA12 Fan Shroud for Copperhead™
- 1x LGX™ PA12 Z-axis end switch adapter
- 2x M2.5×10 button head screw
1x Copperhead™ Heat Sink (screw mount)
1x Copperhead™ Hot Block
1x Copperhead™ Standard Heat Break
1x Mosquito 24V fan
1x Bondtech Coated Nozzle M6×1×7.5×12.5 1.75
